How to Connect a K-DCAN Adapter to ISTA+ – Guide for BMW E-Series
Meta Title (max 60 characters): Connect K-DCAN to ISTA+ – BMW E-Series Guide Meta Description (max 155 characters): Connect K-DCAN adapter to ISTA+: COM port, latency timer, and Ediabas settings for BMW E-Series explained step-by-step. URL Handle Suggestion: k-dcan-ista-connect-e-series Tags Suggestion: K-DCAN, ISTA+, BMW E-Series, EDIABAS
Why doesn't ISTA+ recognize the K-DCAN cable?
Many BMW owners and workshops use a K-DCAN cable in combination with ISTA+ for diagnosing E-series vehicles. If the cable is not set up correctly in Windows, ISTA+ often fails to recognize the adapter or the connection to the vehicle breaks.
In most cases, the problem lies with incorrect configuration in Windows. Common causes include:
- Incorrect COM port number
- Incorrect Latency Timer value
- Incorrect Ediabas setting
- Incorrect interface selected in ISTA+
- Missing or incorrect cable driver
- ISTA+ not restarted after interface change
- ISTA+ not started with administrator rights
- Windows Defender blocking important ISTA+ files
If the K-DCAN cable appears in Device Manager but ISTA+ still doesn't connect, the problem is usually with the port settings or the wrong interface selection.
Which ISTA+ versions does this guide apply to?
This procedure is suitable for the following versions:
- ISTA+ 4.57.30
- ISTA+ 4.58.22
- ISTA+ 4.58.32
- ISTA+ 4.58.41
It is mainly used for BMW E-series vehicles with a K-DCAN USB adapter.
What you need before starting
Before you begin, you should have the following ready:
- A BMW K-DCAN USB cable
- A Windows laptop
- ISTA+ installed
- Cable drivers installed
- A BMW E-series vehicle
- Ignition switched on when testing the connection
- Ediabas Setup 7.3
First, connect the K-DCAN cable to the vehicle's OBD port, then connect the USB side to your laptop.
Important pre-settings
For stable operation, ISTA+ should always be started as an administrator. Without administrator rights, connection problems, missing functions, or communication errors with the vehicle can occur.
It is also recommended to add the ISTA+ installation folder to the Windows Defender exclusions. In some cases, Windows Security blocks or isolates important ISTA+ files, which can lead to startup errors, missing components, or communication problems.
Before use, ensure that:
- ISTA+ is always started with "Run as administrator"
- The ISTA+ folder is added to Windows Defender exclusions
- Antivirus software is not blocking any ISTA+ files
- The K-DCAN cable driver is correctly installed

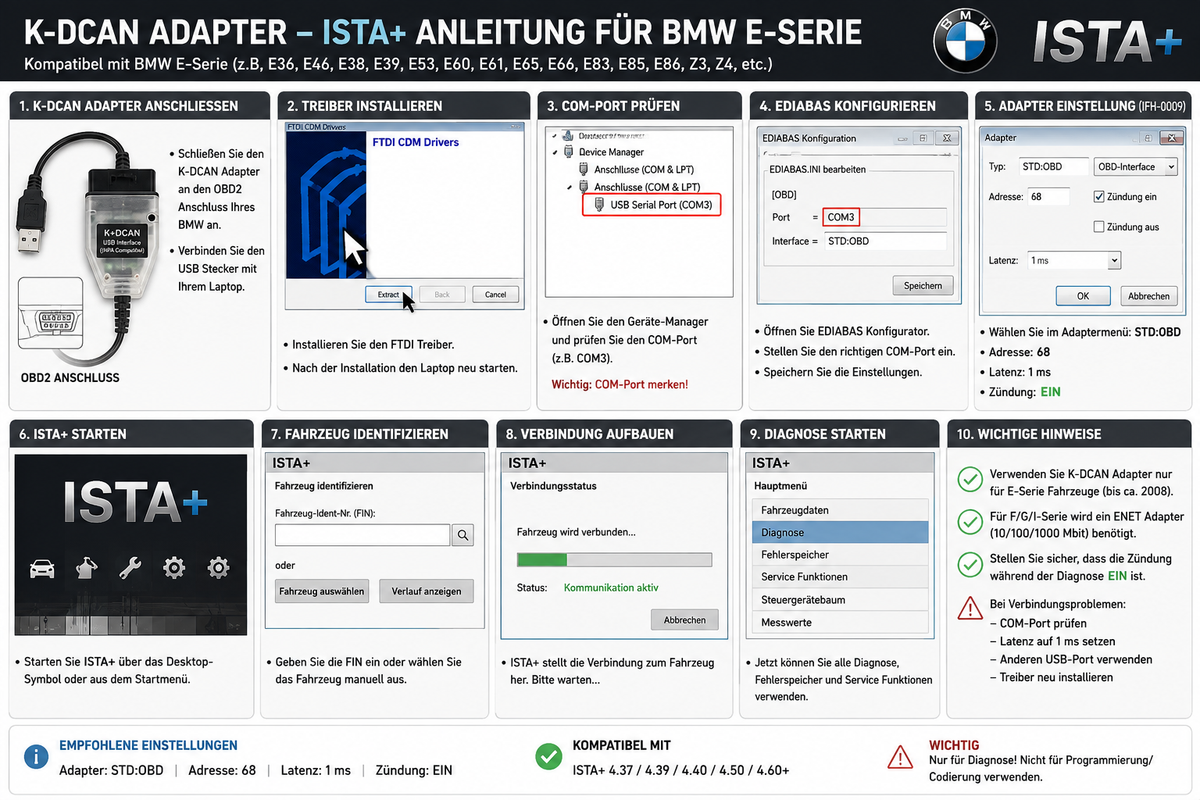

Step-by-step guide
Step 1: Connect K-DCAN cable
Connect the K-DCAN adapter to the BMW's OBD port and then plug the USB side into your laptop.
Then open Device Manager in Windows.
Step 2: Find the cable in Device Manager
In Device Manager, expand the entry:
Ports (COM & LPT)
The adapter should be displayed there as:
USB Serial Port (COM3)
If the cable appears under a different COM number, open the properties and change the number to COM3 in the next step.
Step 3: Open port properties
Right-click on:
USB Serial Port (COM3)
Then select:
Properties
Open the "Port Settings" tab and click "Advanced…".
Step 4: Change COM port number to COM3
In the "Advanced Settings for COM3" window, look for:
COM Port Number
Set this to:
COM3
This is important because BMW Standard Tools and EDIABAS-based communication typically work best when the K-DCAN cable is set to COM3.
Step 5: Set Latency Timer to 1
In the same window, look for:
Latency Timer (msec)
Change the value to:
1
This step is very important for stable communication. A higher latency value can lead to slow response times, unstable connections, or incorrect vehicle detection.
Then click OK to save the settings and close all windows.
Step 6: Start ISTA+ as Administrator
Before opening ISTA+, be sure to start the program with "Run as administrator".
This is recommended for all supported versions:
- ISTA+ 4.57.30
- ISTA+ 4.58.22
- ISTA+ 4.58.32
- ISTA+ 4.58.41
If ISTA+ is not started as an administrator, some interface settings may not be applied correctly, and communication problems may occur.
Step 7: Select the correct vehicle interface in ISTA+
Open ISTA+ and go to:
Administration > Vehicle interface
For a K-DCAN cable on BMW E-series, select:
Ediabas default settings (ediabas.ini)
Do not use the ICOM or ENET options with a K-DCAN adapter.
After selecting "Ediabas default settings (ediabas.ini)", you should restart ISTA+ so that the changes are applied correctly.
Step 8: Restart ISTA+ and open Connection Manager
After restarting ISTA+, go to the main view and click the Connection Manager icon at the top of the program.
If the cable settings are correct, ISTA+ should now be able to communicate with the BMW E-series vehicle via the K-DCAN adapter.
Best settings for the K-DCAN cable in ISTA+ (Overview)
For quick reference, the correct K-DCAN configuration:
| Setting | Value |
|---|---|
| COM Port Number | COM3 |
| Latency Timer | 1 |
| ISTA+ Interface | Ediabas default settings (ediabas.ini) |
| ISTA+ Start Mode | Run as administrator |
| Windows Defender | ISTA+ folder added to exclusions |
These settings resolve most connection problems when ISTA+ doesn't recognize the K-DCAN cable.
Troubleshooting: K-DCAN not working in ISTA+
If ISTA+ still doesn't connect, check the following:
- Is the cable driver correctly installed?
- Is the cable displayed in Device Manager?
- Is the adapter set to COM3?
- Is the Latency Timer set to 1?
- Is "Ediabas default settings (ediabas.ini)" selected in ISTA+?
- Was ISTA+ restarted after changing the interface?
- Is ISTA+ started as an administrator?
- Is the ISTA+ folder excluded by Windows Defender?
- Is the ignition in the vehicle switched on?
- Are the cable and USB port working correctly?
If all settings are correct and there is still no connection, it often helps to reconnect the cable, restart the laptop, and reopen ISTA+ as an administrator.
Which BMW models use K-DCAN with ISTA+?
K-DCAN is commonly used in many BMW E-series vehicles. It is a popular choice for diagnosis, reading fault codes, service functions, and some configuration tasks on older BMW platforms based on EDIABAS communication.
For newer BMW F-series and G-series vehicles, ENET or ICOM is usually the better option.
Conclusion
To connect a K-DCAN adapter to ISTA+ for BMW E-series vehicles, the most important steps are: set the cable to COM3, change the Latency Timer to 1, and select "Ediabas default settings (ediabas.ini)" in ISTA+.
For best stability, ISTA+ should always be started as an administrator, and the ISTA+ installation folder should be added to Windows Defender exclusions. Once these settings are correct, ISTA+ should recognize the cable and communicate normally with the vehicle.
Frequently Asked Questions (FAQ)
Why should EDIABAS 7.3 be used with K-DCAN? In many ISTA+ installations, the default configuration is designed for ICOM and ENET, which usually use EDIABAS 7.7. A K-DCAN cable, however, generally works better with EDIABAS 7.3. If the system remains on EDIABAS 7.7, ISTA+ may not correctly recognize the adapter or communication problems with BMW E-series vehicles may occur. For this reason, EDIABAS 7.3 is recommended for the K-DCAN connection.
Why doesn't ISTA+ recognize my K-DCAN cable? The most common causes are incorrect COM port settings, an incorrect Latency Timer, an incorrect interface selection in ISTA+, missing drivers, or an ISTA+ folder blocked by Windows Defender.
Which COM port should I use for K-DCAN? For most BMW E-series setups, COM3 is recommended.
To what value should the Latency Timer be set? Set the Latency Timer to 1 for better communication speed and stability.
Which interface should I select in ISTA+ for K-DCAN? Select "Ediabas default settings (ediabas.ini)".
Should I start ISTA+ as an administrator? Yes. ISTA+ should always be started as an administrator for more stable operation and fewer connection problems.
Should I add ISTA+ to Windows Defender exclusions? Yes. It is recommended to add the ISTA+ folder to Windows Defender exclusions so that Windows Security does not block important program files.
Is K-DCAN suitable for BMW F-series or G-series? K-DCAN is primarily intended for the BMW E-series. For newer BMW vehicles, ENET or ICOM is usually preferred.
